Specifications

Product Description

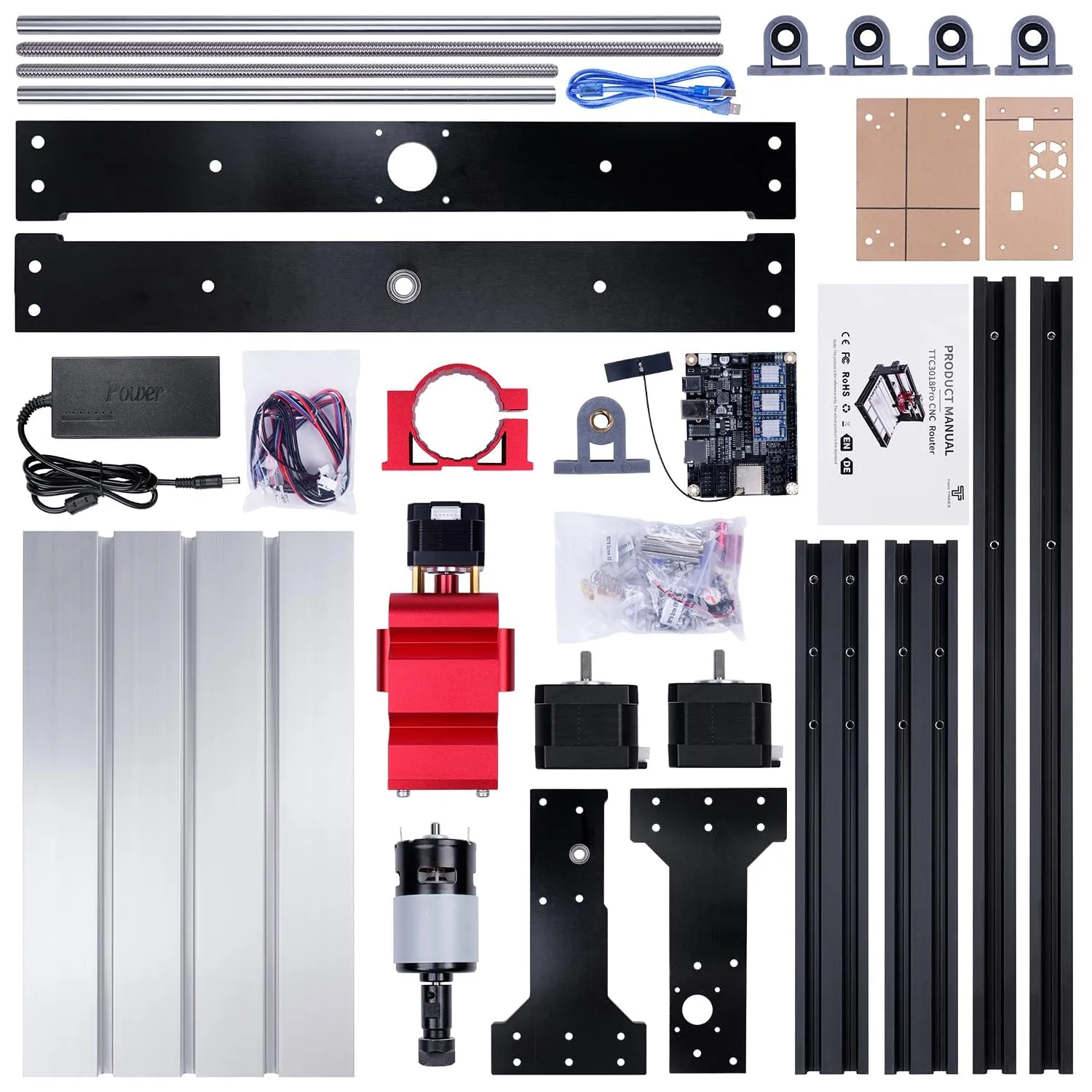

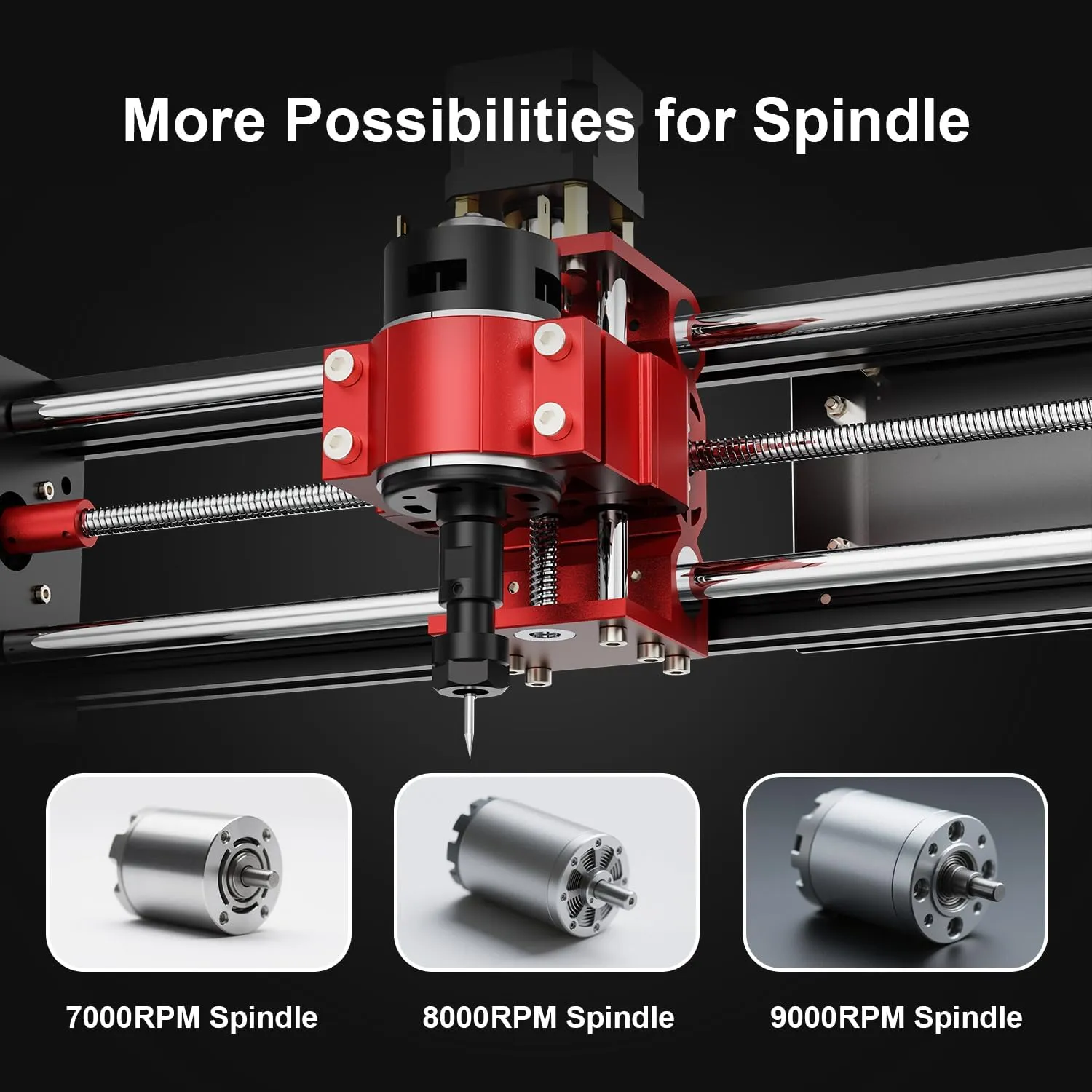

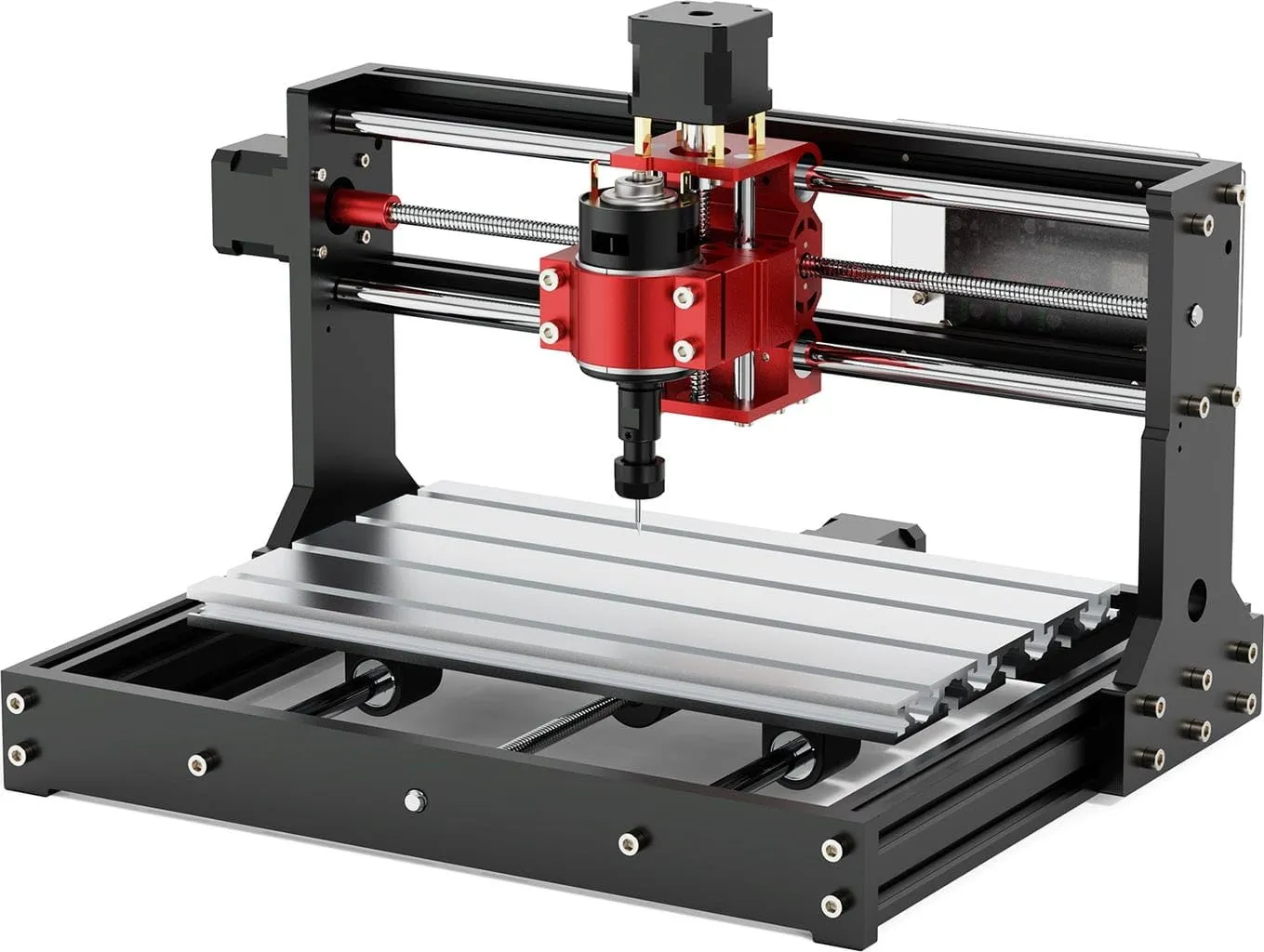

Precision CNC Carving - Features 0.1mm positioning accuracy with 300x180x40mm working area. Ideal for wood, acrylic, plastic, aluminum, and brass engraving. Supports 0.5-7mm ER11 collet bits (7000-9000 RPM). Robust Aluminum Construction - Durable aluminum frame with acrylic/electrical board components. Compact 420x355x280mm design (6.8kg) balances stability and portability. Advanced GRBL Control - MKSDLC32 V2.0 motherboard (A4988 drivers) compatible with Artcam, Fusion360, Easel. Supports .nc/.gcode files via USB/TF card (Windows XP-10). High-Speed Performance - 1500mm/min max speed with GT2-6mm/T8-8mm lead screws. Includes three 42 stepper motors (17HS3401S-15B/34) for XYZ-axis movement. Complete Ready-to-Use Kit - Includes 775 brushed spindle motor, 12-24V/5A power adapter (100-240V input), and 2.4GHz WiFi module. CE/FCC/ROHS certified for safe operation (0-40°C).
